Advacned carbon steel SSAW welded pipe mill
1.Machine Description
Spiral steel pipe machine is used to manufacture spiral seam welded pipe.
It can produce steel pipes of different diameters with strips of the same width, and produce steel pipes of the same diameter with strips of different widths. Spiral pipe welding machine (spiral steel pipe machine) is mainly for front swing type and rear swing type.This machine is composed of uncoiler, feeding, straightening, shearing, receiving, trimming, delivering, input guide plate, forming, steel pipe internal and external welding, pipe cutting output and pipe turnover
2.Machine quick detailes
Coil Specification
Marital: Q235, Q345
Coil thickness: 5 - 22mm
Coil width: 700-1500 mm
Max. coil weight: 25T
Product specification
Pipe O.D. : Φ508-Φ2220mm
Pipe thickness: 5-22mm
Pipe length: 8 - 12m
3.Machine list

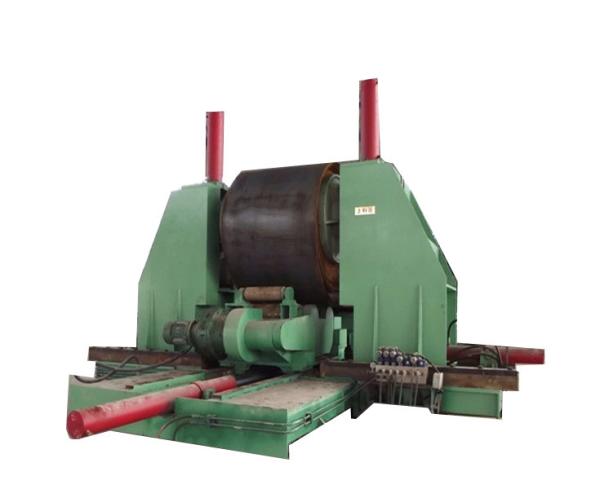

1- Uncoiler
1- Peeler
2- Hydraulic vertical roller
1- Shear and butt welding device
1- 5 roll leveling machine
1- Edge Planer Machine
1- Delivery machine
1- Front bridge
1- Guide plate
1- Forming machine
1- Inner welding device
1- Outer welding device
1- Plasma cutting device
1- Rear bridge
1- Center support
1- Hydraulic system
1- Electrical control system
4. Model
| Model | Pipe diameter(mm) | Pipe thickness(mm) | Coil width (mm) |
| SAW 508 | Φ219-Φ508 | 4-10 | 400-800 |
| SAW 610 | Φ219-Φ610 | 4-10 | 400-1000 |
| SAW 820 | Φ219-Φ820 | 4-12 | 400-1250 |
| SAW1020 | Φ219-Φ1020 | 4-14 | 500-1250 |
| SAW 1220 | Φ219-Φ1220 | 4-14 | 500-1500 |
| SAW 1420 | Φ400-Φ1420 | 4-16 | 500-1500 |
| SAW 1620 | Φ400-Φ1620 | 4-16 | 500-1500 |
| SAW 1820 | Φ508-Φ1820 | 4-20 | 1000-1800 |
| SAW 2220 | Φ508-Φ2220 | 4-22 | 1000-1800 |
| SAW2540 | Φ508-Φ2540 | 4-25.4 | 1000-2000 |
| SAW3000 | Φ508-Φ3000 | 4-25.4 | 1000-2000 |
5.Usage
1.1,Standard: As per API-5L Specification for oil / gas pipes.
1.2,Low-pressure fluid pipeline, city gas transmission, supply and drainage water
pipeline.
1.3,As per specifications of Piling steel pipes /industrial structure pipes
6.Customer service
Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
Your inquiry related to our products or price will be replied in 24hrs.
Keep informing our customer production process and help arrange quality checking in the factory if necessary.
One-year warranty to our display and one-year warranty to spare parts.
Buyer can dispatch technician to our factory for free training before delivery.
For essential equipment failure, we will arrange our engineer head to local site toinstall, also provide online technical support for the whole life.
